Virtual Host Development: Part 2

Last week I made the case for using virtual hosts for software development purposes. So this week we’re going to actually try it out. There are a number of considerations to make before we get stuck in so let’s go …

Choosing a Virtual Host Manager

As far as I can tell there are two main equivalent software products for virtual host solutions. They are: Microsoft Virtual PC 2007 (MVPC) and VMware Workstation 6 (WS6). The most notable difference between the hosts is that WS6 costs (at time of writing) $189 and MVPC is free.

However, free comes at a cost. There are a number of disadvantages (for me at least) with MVPC that mean that I will be ponying up the cashwa for vmware’s offering.

  • Guest Display Hardware – Since we have a virtual host it also has a virtual display card. The one that sits inside MVPC is only capable of screen resolutions upto 1600×1200. Since I have a wide-screen display that is set to 1920×1200 it’s a bit of a waste. However vmware can also display on multiple monitors making use of dual head displays.
  • Guest Support – Yes I love Linux and I have to say (because I tried it) that trying to create an Ubuntu virtual guest on Virtual PC was like trying to herd cats. I’d get one part working only to find that something else was bust, whilst it’s possible it’s a pain. If you decide to go ahead with this you should take a look at this article which explains the hoops you must get your kitty’s through. In theory, I guess, you should be able to get any x86 OS that works in WS6 working in MVPC (as long as it isn’t 64 bit). So far though, and this is an observation based on one data point, I think the virtual hardware in WS6 must be more generic than MVPC.
  • Guest OS Tools – Both MVPC and WS6 require you to install additional tools after the core OS install that enhance the operation of the virtual machine. Why I couldn’t really figure out exactly what the tools do it seems reasonable to assume that they’re useful. Indeed it’s not until you install the tools on WS6 that you can access the higher resolutions. With WS6 then it provides tools for Linux where as MVPC does not. Whether this makes an observable improvement to the WS6 experience for Linux would require more time to tell ..
  • Host OS Support – VMware will run on Linux. So should I decide that I want to take my removable disks and put them somewhere else I could. At least in theory
  • Converters – WS6 has a free ‘converter’ which allows the creation of WS6 virtual windows (only) hosts from MVPC ones. Which is nice. Not only that though the converters are bootable so that you can create a virtual ‘copy’ of an already installed non-virtual OS. Whilst I did successfully convert MVPC hosts I didn’t try and virtualise an existing host

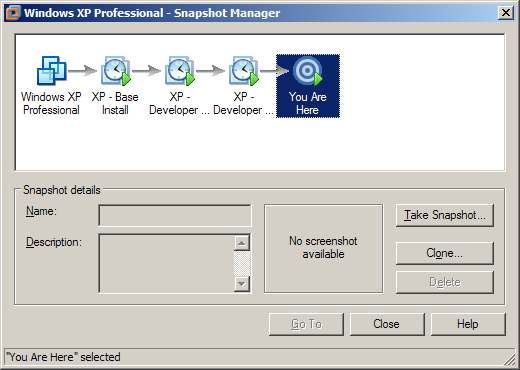

  • Snapshot Manager – vmware has a snapshot manager which makes the management of snapshots a lot simpler to comprehend. You get a sort of snapshot time-line that you can chose from and cycle through. MVPC has a similar concept but it’s not as clean.

Snapshot Manager

The virtual host manager you chose will depend on what you need. For me MVPC is not a choice, however there are probably a fair few people who could get good results from MVPC making the benefits of WS6 not that important. Since you can download a trial version of WS6 I would suggest you at least try it before deciding. To me WS6 product feels mature and the user interface seems more intuitive. Your mileage may vary.

For the remainder of this discussion I will talk about using WS6. Whilst you could in theory use MVPC and mostly apply the same ideas the two are not equivalent, as already discussed.

Creating The Host

Having settled on vmware I should say a little about the settings I chose. I’m not saying that these are ideal but for development purposes they seemed like sensible defaults to me. Firstly I instructed WS6 to create me a custom virtual host. For the most part I used the presented defaults but deviated on a few items:

  1. Non-Local Disk – When I say non-local I mean non-local to the host OS. If the disk of a virtual host is the same physical disk of the non-virtual host then you will have I/O performance issues. This is especially true for laptops that tend to have slower hard disks than their desktop equivalents (4200rpm vs 7200rpm). That’s why I went and bought an external drive enclosure and speedy hard disk before I started
  2. Memory – Since these hosts are development hosts I’m probably going to need some RAM, especially since I intend to run VS2005 on the windows host. Therefore I chose 1Gb RAM for the windows hosts and 512Mb for the Ubuntu host. Note that for windows changing the amount of memory after the OS is activated can force you to reactivate your license. So getting it right-enough first time would be a bonus. After running both systems on this configuration for a couple of weeks I can say that the settings are convenient enough for me and I’ve not noticed any excessive paging and performance is fine.
  3. Networking – I elected to chose NAT as my virtual networking setup. This puts my virtual hosts on their own subnet, they access the internet as the non-virtual host and then the results are routed back by vmware. The other alternative might be to bridge virtual and real host but this, I think, would make my virtual host a peer of the real one on the domain. Something I want to avoid for now.
  4. Disk Size – I allocated 80Gb disks to each host. In practice I would probably only use about 10% of that space but WS6 does not allocate the space all at once. This means I only use as much space as I need. This obviously incurs an overhead because the disk is allocated on demand. However I wanted to see if this really causes a noticeable problem before I elect to allocate all the disk at once. Keeping the space to a minimum obviously has advantages for backup purposes but also (I would guess) mean that snapshots take less time.

Building The Host

Obviously I must now load an appropriate OS onto each of my virtual hosts. You do this by simply attaching an ISO to the machine and installing in the normal way. Once installed you should install the VMware tools that improve the integration between your host and guest OS. After installing the extensions (and not before) you should activate your license on Windows based-hosts.

Next you should apply all the updates that are necessary to make your host a good netizen, either through Microsoft Update or whatever package manager your OS uses.

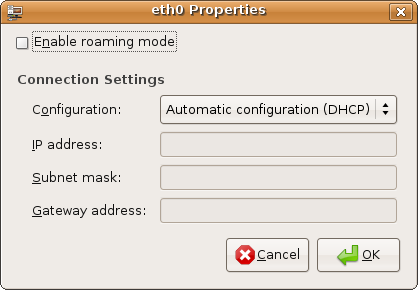

It was at this point that I ran into an issue with Ubuntu which relates to the networking. By default Ubuntu 7.10 turns ‘roaming’ network mode on and this doesn’t play nice with WS6. So turning it off and selecting DHCP insted was needed.

Network Roaming Mode Is Bad

Once built and patched I created checkpoints for both systems to rollback to or clone. This will be useful when I need to create a ‘test’ host for deployment or system testing.

Stack ‘Em High

One of my complaints about developing for Windows is the height of the development stack. Not only do I have to install dev studio but I have to install a bunch of service packs, add-ins and 3rd party software, and their service packs, to have anything like a workable development system. The problem is, when something goes wrong and your installation gets knackered in some way (it’s happened to me twice in the last year) you can kiss goodbye to 1 days development time whilst you sort it out.

That’s why, once I had all the development tools installed, I then took another snapshot to record the base development install so I can revert to it in seconds rather than hours. It’s my intention that when I went to install a new software tool I will clone a snapshot, install the software and see what it does before I commit to installing it into the main disk image.

Shared Disks

One important feature of having a virtual host is being able to easily share data between the guest and host OS. The clipboard works fine for a lot of things but when you want to expose a 1Gb ISO from the host to the guest it becomes a bit painful. Sure you could FTP the files from one to the other but that would be a pain. What you really need is to expose a part of the host file system to your virtual machine. Under windows and WS6 this results in the creation of \\.host URI that is accessible from the guest windows OS.

However for Ubuntu it failed because the installation of the tools failed without me noticing!! It turns out there is a bug in one of the vmware headers that incorrectly sets which kernel API to use. This is one of the problems with Linux I guess in as much as vendors have to release source code drivers because of all the different versions the guest OS could be. However, because it’s source code it’s also easy to fix! By following the instructions on the Ubuntu forums I had the matter resolved in minutes.

Accessing Domain Hosts

There’s a couple of problems with interacting with other network hosts when using virtual hosts.

  1. If you’re developing on a shared network and you are unable to make your virtual machine a peer on the network then you will probably have chosen NAT networking. This, as discussed, puts you machines on their own subnet. The consequence of this is that you will need to start using qualified domain names to be able to access the hosts that are in the same domain as your non-virtual machine. This isn’t a huge discomfort and it’s arguably the right thing to do if you’re embedding those names into software that you’re writing anyway.

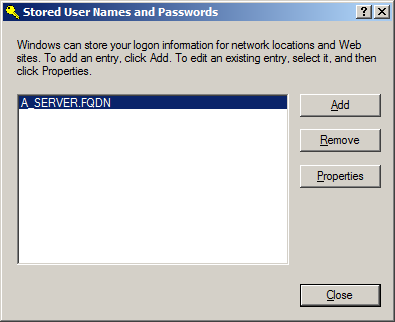

  2. The second problem relates to the use of Windows authentication. Applications that use windows authentication (like SQL Server Management Studio) will fail because your virtual machine is not part of the domain. One solution is again to make your virtual host a peer on the network. Whilst this would be the ideal it might create implications for how you’re going to manage a battery of virtual machines and might result in some loss of liberty because you’re system administrator got scared. The solution is to use a feature of windows networking that allows the user to manage multiple identities. This will allow you to enter a set of credentials for each machine that you will connect to. After making these changes applications that use Windows authentication work flawlessly.

Stored Passwords

Conclusions

After spending a week of development on virtual machines I like it. I don’t notice any performance lags on the widows host everything works beautifully. On Linux I occasionally have mouse problems where the mouse refuses to roll over a particular screen area. This needs to be reset by disconnecting control from the VM (Ctrl+Alt) and then clicking (to regain the control) and trying again. It’s possible that this problem is something to do with known mouse problems, perhaps more investigation is required.

The WS6 ribbon makes switching between machines and displays simple. The ribbon also makes using WS6 analgous to using remote desktop which feels natural.

WS6 Ribbon

It had been my original intention to run only my development needs inside the virtual machines and keep the real machine for my office needs like e-mail, spreadsheet and word processing. However that becomes awkward to juggle between and means that I sometimes miss e-mail or IMs when the development host is maximized over the top of the host desktop. Having said that though maybe not getting distracted is a good thing 😉

However, I’m starting to think that I should adjust the windows virtual machine RAM and install all of the office applications and IM software into the windows development host. Reducing the host OS to simply a shell for the VMware software. All in all though, I’d recommend all developers to try it out at least. It ticks all the boxes I wanted and after the setup and configuration it makes development a saner process. Which has to be good, right?

Categories
programming

Virtual Host Development: Part 1

I got a new PC this week. Oooooh. It instantly presented me with a challenge:

Q. Is it possible to make full use of a standard mid-range specification development desktop host?
A. … errr … dunno …

As a developer I have long believed that we, me included, fool ourselves into purchasing new hardware and software that we don’t need. This constant upgrade cycle blind-sides us from separating what’s important from what is aesthetically pleasing. Since 2004 (when we approached the PC clock-speed ceiling) I can’t think of any advance in software or hardware that has really compelled me to want to go and buy something new. I discovered some time back that the biggest productivity bonus you can get from any developer is to give them two monitors (oh, and a graphics card that can support them too!). Giving those developers Vista or a bigger/faster machine won’t buy you much other less help-desk time supporting old kit and a better relationship with your hardware vendor.

The things that have changed since 2004 is the cheapness of RAM & disk and the addition of multi-core CPUs. Although 64 bit has also come online too that in itself only really gives you more addressable RAM. For the moment the circa 3Gb addressable in most 32 bit OS’s is fine for me and my development needs. This means that by default I get as much RAM as the OS can handle, 2 large disks and a multi-core CPU.

So, in the absence of a new OS to tax it the new hardware was begging for a thrashing and I thought knew just the thing. I would start doing virtual host development. That is, install a VMware style virtual host manager and run my development environment entirely inside a guest operating system. The host operating system, i.e. the real one, would be used for sending email, surfing, browsing documents and running the virtual host manager.

This way of working has some desirable consequences:

  1. Snapshots – Most virtual host managers allow the taking of snapshots. So the plan is to take a snapshot after each major milestone of the virtual host build. That is:
    • Right after the install (& patch) of the base OS
    • After the install of the standard development tools
    • After the install of personal development tools that I use

    Regardless of the OS you use your development environment will usually take you a fairly long time to build. This is because you have to load: IDEs, source control, useful editors and whatever else you fancy. The installation of the DevStudio stack alone can take the best part of a day. The ability to go back in time to anyone of those points will be very useful if something goes wrong. It’s not only that though, most virtual host managers will allow you to ‘clone’ a snapshot so that you can take your current environment, clone it, fire it up, install something wacky, and see if it works. If it doesn’t work as you expected then you live to fight another day.

  2. Security – I have never particularly liked installing my custom tools and utilities on my company’s hardware. It complicates matters when system administrator’s are needed to try and resolve problems. This is because, and rightly so, the first thing they’ll blame when something goes wrong is that piece of custom software I installed last week. Therefore, I think, at least in theory that I will no longer need administrator privileges on my own machine because I will have an administrator account on my virtual hosts. I’m not convinced of this view just yet, but I aim to demonstrate it here!
  3. Testing – Deployment of my developed code is always hard to test. It’s hard because you need a clean machine to work with to be able to prove that the test was indeed a success. With the aid of snapshots I can boot a clean machine and attempt a deployment to it. If it succeeds great, if it fails I just start again safe in the knowledge that I haven’t soiled my clean machine and the test is still a good one.
  4. OS Choice – I still think UNIX is far and away the most powerful and transparent OS, but that might be because I’ve been banging my head against it for a very long time. Anyway, I like having UNIX around and when I don’t have it it makes me kind-of sad and angry. Angry that I can’t: grep a file for a regex pattern, pipe it through gawk to get a particular column, pipe that through sort, then pipe that through uniq -c and pipe the whole lot through sort -g. How else would you answer the question of how can you do a:
    SELECT Value, COUNT(*)
    WHERE Value LIKE '%XYZ%'
    GROUP BY Value
    ORDER BY COUNT(*) DESC

    … on a flat file? On second thoughts don’t answer that.

In Part 2 I will look at what I discovered. The pitfalls of running a development host within a virtual host and more on why I really do love UNIX an awful lot.

(Ok perhaps I’ll leave that bit out :-))

Categories
programming

The Free & The Damned

I sometimes wonder if I worked in a company that made software for others, instead of a company that makes software for itself, whether I would be a better: programmer, ventroliquist and lover. Ok, scratch the bit about the lover.

There are many potential reasons why this might be so but I want to focus on just two.

  1. When the software is the company’s business then as a developer you are closer to that business with all the benefits that brings. Essentially it’s the difference between supporting the business and being the business
  2. The second point is the related point that when software is the business, rather than for internal use, it is necessarily of a higher standard.

Item #2 is because your internal users pay for their software only indirectly. They don’t sign a EULA, and the cheques that they do sign are for salaries and aren’t budgeted in quite the same way. Our internal users will put up with sub-standard sofrware that people who have to sign a EULA and pay hard-green for will not.

The thing is that working for a company that doesn’t produce software as its primary function is still great fun. For much of what I’ve been doing for that last few years the business area I work in is only tangentially computer related. That is computers & technology are critical to the business because of the level of automation they provide not for any other reason. This makes the technology they use the means and not the ends.

This is both liberating and damning all at once. It’s liberating because I’m free to ignore decades of good software engineering practice if it is profitable and expedient to do so. Put trivially, if my software could directly generate revenues then time spent making it compile without warnings is time that it could be accumulating wealth. It’s damning because all those unfixed warnings are going to make an expensive mistake one day. I, as the programmer, have to choose where to draw the line.

Good quality software should be well-designed on very many levels: interaction, architecture, performance, etc. Anyone who buys software should demand good quality software or their money back. Therefore I would think (obviously I don’t know :-)) that being both free & damned isn’t necessarily a bad place to be. At least you’ll get the chance to make a bit of lucre while you’re free and when you’re in hell you’ll always have a job refactoring.

Categories
programming

Constrained By Types (In Another Dimension)

I just read this. Which was interesting. I love the way that Steve has a simple point to make and spends 000s of words doing it, the posts always seem to ramble a bit (a little like mine!) but they’re usually fully of interesting tidbits and insights into software development so it’s usually worth spending 30 minutes or so on his issuances.

You can write C++ like straight C code if you like, using buffers and pointers and nary a user-defined type to be found. Or you can spend weeks agonizing over template metaprogramming with your peers, trying to force the type system to do something it’s just not powerful enough to express. Guess which group gets more actual work done? My bet would be the C coders. C++ helps them iron things out in sticky situations (e.g. data structures) where you need a little more structure around the public API, but for the most part they’re just moving data around and running algorithms, rather than trying to coerce their error-handling system to catch programmatic errors. It’s fun to try to make a bulletproof model, but their peers are making them look bad by actually deploying systems. In practice, trying to make an error-proof system is way more work than it’s worth.

This post raises a point that I hadn’t really considered before which is that perhaps we should consider static types to be a form of metadata, much like comments. The more static types you have the more constraining your model will be on the system that you’re creating. This is as it should be because that’s why you created those static types in the first place, right? But that model could just as well not exist. You could have created a system without all that new-fangled OOP crap and it might be a lot less complex. You could have the whole thing written in half-a-day and still be home in time for the footy.

A few years ago I was assigned to a trading system project that was to replace an existing legacy system. The existing trading system was single threaded, multi-user and suffered all sorts of performance & concurrency problems. One of it’s strengths, though, was that it was partly written in Tcl. Now Tcl isn’t one of the worlds greatest languages but it is dynamically typed and that gives it a certain flexibility. For instance, the shape and content of our core data was changing fairly constantly. Now, because that data was basically a bunch of name-value pairs inside the system it was possible to change the shape of the data in the system while it was running. I doubt that this ‘feature’ was ever consciously designed in to the legacy system from the beginning, but the flexibility and simplicity it gave was really very powerful.

When the replacement system came it was written in C++ and Java and had its own language embedded within it. It was a technical triumph in many ways and represented a tremendous leap forwards in many other ways. But the flexibility had gone because it would have taken extra effort to preserve that flexibility using statically typed languages. As a result the new system was faster and cleaner but more fragile and much harder to maintain. It was only when we started turning the legacy system off that it occurred to me that we had sacrificed something really quite important without really knowing it.

This flexibility, then, obviously has the downside that if our system is not very constrained it will most likely be a total mess. That was one of the drivers for replacing the legacy system in the first place. Moreover, this is especially likely to be true if there’s more than one person working on the system. Those static types clearly served a purpose after all in allowing us to categorise our thoughts about the behaviours of the system and then communicate them to others.

I suspect the solution is like almost everything, it’s a compromise. Experience will tell you when you need to constrain and when not to. Indeed, this is pretty close to the actual conclusion Steve comes to as well. In practice though I suspect that on large complex projects you would have to be very disciplined about the programming idioms you are going to use in the absence of those static types. It’s another dimension to the programming plane, and I don’t need to tell you that there are quite a few other dimensions already.

Categories
programming

The Cracked Mirror

I remember reading somewhere (perhaps here but I can’t find the reference now) that the business of programming is the act of producing a simplified mirror-model of the business processes that it is trying to encapsulate.

This seems an intuitive statement. If I come to your company and make software to help your business it must capture at least some of the essence of what your business does. Indeed the programs that I and my colleagues write should in some way mirror the businesses that they belong to. If they don’t then we have to consider that I and my colleagues have probably failed.

In 1997 I entered the finance industry knowing almost nothing about finance. Pure green. So, eager to learn, I thought that if I looked at the code that I would be able to understand some of what was going on in the business. It turned out that this was as true as it was false. Yes the code mirrored the business but it turns out that that particular mirror was cracked. What I thought I understood about the business was distorted by irrelevant detail.

It’s obvious when I think about it now but the code that I was looking at had not been placed infront of me by an alien life-force (although some of the dudes were pretty strange) it had evolved. Code had been added to support business ventures that had subsequently been ended or even worse code had been added that was just plain wrong. In both these circumstances the users of the system compensated for the semantic gap between business and system, by doing what humans do best: working around the problem.

It seems then that this cracked mirror is inevitable because software decays. To really know what’s going on in your organisation you have to bang on doors. You have to ask the users the questions that make you look like Mr. Stupid. Only then can you build the model in your head of what is really going on.

What’s that you say? You’ve got business analysts? FIRE THEM! They don’t work people. I mean, yes they do work, but unless they are top-notch they create more problems than they solve.

Perhaps I’m preaching to the choir. Perhaps the choir went home. Perhaps I’ve been abducted by aliens and I’m still living in my 1997. Perhaps not.
